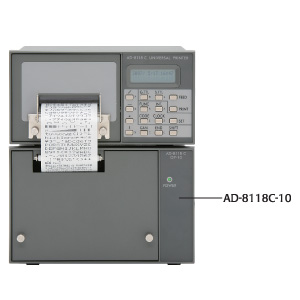

AD-8118C UNIVERSAL PRINTER
The AD-8118C is a universal printer designed for
connection with indicators, scales and electronic balances.
Features
Date and time printing function (built-in calendar/clock)
Cumulative memory function (Memory stored even if the power supply is switched off.)
Internal battery provides calendar/clock and cumulative memory function back-up for approx. 10 years.
Cumulative/statistical calculation functions by code/ input channel
Print modes* : Random, Dump, Interval, and Batch
Print format modification function using the operation keys (in the random print mode)

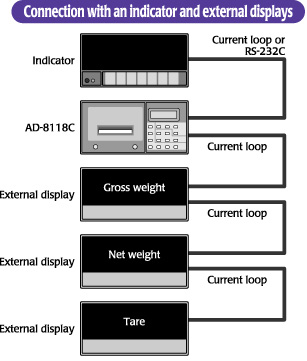

Connectable to external displays (up to 3 devices) with a current loop output (channel 1 only)

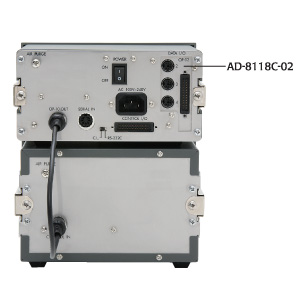

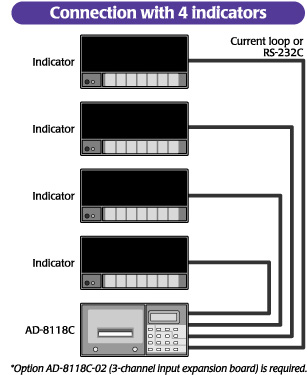

Up to 4 data output devices including indicators (AD-8118C-02 required) can be connected to a single AD-8118C printer.
Receives input signal via a current loop (maximum length of approx. 100m) or RS-232C (maximum length of approx. 15m)
